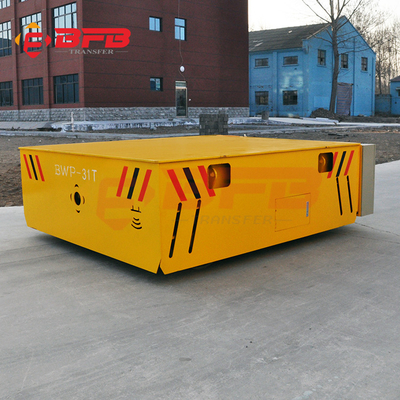

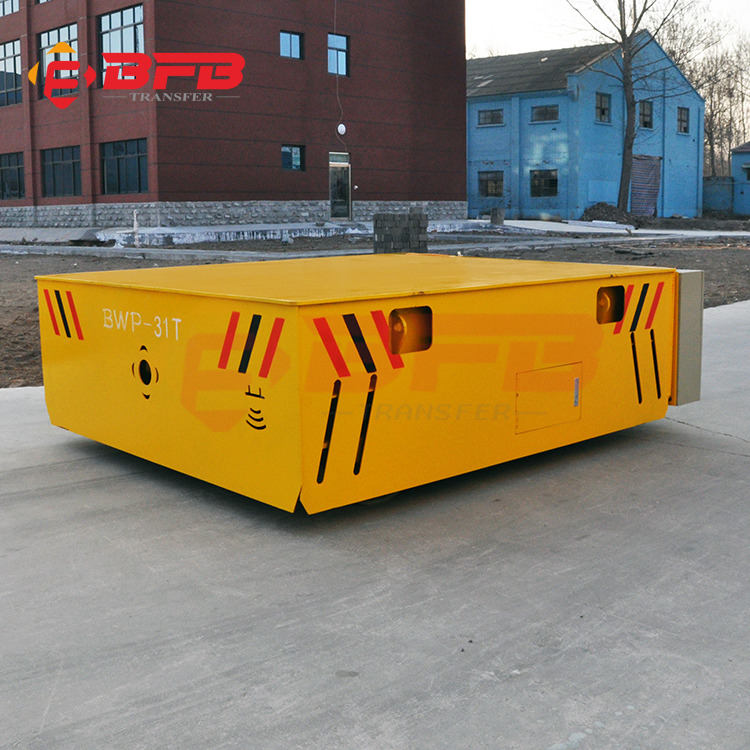

The kinds of dual drive system heavy duty battery electric trackless transfer cart, motor gear reducer as driving system, solid PU wheels can be run on the ground directly and flexibly with no limited running distance. And imported solid PU wheels can reduce the impair for the ground. It can be suitable for smaller space by 360 degree spot turning, 360 degree protection to guarantee site safety, including dead man stop, emergency stop., anti-collision device... touch-screen, Pry bar device,...this design is humanization and modernization. Automated operation makes the cart more intelligent.
Our Design Concepts
In order to meet industrial transport demand, we design the kinds of battery trackess transfer cart , which makes the transporting more convenient and realized turning easily. What’s more, the safe protection has been done in many points, which not only promote safety factor but also get good assessment from our client all over the world.
The trackless transfer cart can be used in all kinds of environment with no limited running distance.
Its application range includes: mold field, car field, steel, iron, heavy industry, light industry, chemical, mine, ship, project, spaceflight, coal, nuclear energy, hydraulic engineering,etc.
For material transport: mould, boiler, coil items, transformer, shaft, drum, steel ladle, steel structure, steel pipe, mould, beam, container, heavy equipment, Aluminum product, compressor, polycrystalline silicon, motor, coil, scrap, pallet...
All can be customized as per customers’ requirement.And our business is meeting your business need, hope our professional team can help you well with rich experience.
The series’ electric trackless transfer cart . The battery is installed in the cart. The batteries supplied the electricity to the DC motor through the electrical control system. By this ways, we can make the battery transfer carts to start, stop, go forward , back forward , adjust the speed and so on.
Of course, the power supply are chosen as per your working environment, the proper solution will be recommended to you after knowing your plant. hope rich experience (more than 15 years) can help you well.
Click here to learn more!
The cart frame is two longitudinal beam, several beams with steel panel welded together, which adopts box beam structure according to the crane principle and combined with the design of the cart. Its main feather: large load bearing, little table deformation, long service lifetime..
About the cart wheels, the material is PU wheels, inside is cast steel, outside is encapsulation. by the design, its main function is damping. in our battery transfer cart , this kinds are also chose. And the wheel are manufactured and assemblied by ourselves.
About the battery, The maintenance free type battery also is chosen to export. this kinds are convenient, and long lifetime, we needn't maintain once a regular time. so in this series flat carriaget, it is popular among customers. Generally speaking, the charging time is about 8 hours..
Generally speaking, the intelligent charger is chosen to export, it has high frequency, little interference to the grid, and small volume. The charger can not only realize rapid charging, but also no damage to the battery, and prolong battery lifetime.
The lifting hole are installed on the battery transfer cart for convenient transporting. Especially, it can be lifted and moved after the structure finished.What’s more, it makes the appearance more delicate and beautiful.
For safe running, it is installed on the cart, it will ring continuously to warn someones when the cart start running. Of course, the other parts can be installed, as dead man stop, emergency stop, anti-colliding switch, buffer... all can be meet only you’d like by our professional team.
Model | BWP-2T | BWP-10T | BWP-20T | BWP-30T | BWP-50T | BWP-63T | BWP-150T | |
| Rated load (T) | 2 | 10 | 20 | 30 | 50 | 63 | 150 | |
| Table size | length(L) | 2000 | 3600 | 4000 | 4500 | 5500 | 5600 | 10000 |
| Width(W) | 1500 | 2000 | 2200 | 2200 | 2500 | 2500 | 3000 | |
| Height(H) | 450 | 500 | 550 | 600 | 650 | 700 | 1200 | |
| Wheel Base (mm) | 1200 | 2600 | 2800 | 3200 | 4200 | 4300 | 7000 | |
| Wheel Diameter(mm) | Φ270 | Φ300 | Φ350 | Φ400 | Φ500 | Φ600 | Φ600 | |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 75 | 75 | |
| Motor Power (Kw) | 1 | 1.6 | 2.2 | 3.5 | 5 | 6.3 | 15 | |
| Battery Capacity(Ah) | 180 | 160 | 180 | 250 | 330 | 400 | 600 | |
| Battery Voltage(V) | 24 | 48 | 48 | 48 | 48 | 48 | 72 | |
| Running Time When Full Load | 4.32 | 4.8 | 4 | 3.5 | 3.3 | 3 | 2.9 | |
| Running Distance for one Charge(Km) | 6.5 | 7.2 | 4.8 | 4.2 | 4 | 3.6 | 3.2 | |
| Max Wheel Load (KN) | 14.4 | 42.6 | 77.7 | 110.4 | 174 | 221.4 | 265.2 | |
Click here to learn more!
Company Profile
Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a collection of research, design, manufacture, installation and after-sales service of electric handling bogie ,transfer carriages as one of the professional manufacturing company, which has a modernized management team and excellent staff.And our prodcuts gets CE, SASO,SGS,ISO certificate and other 8 national patent, our products have been exported to more than 50 countries and regions,such as Germany, Mexico, USA, Turkey, South Africa, Singapore etc.
| Product Name | Model No. | Power Supply Mode | Load Capacity | Other Items | Usage |
| Rail Transfer cart | KPD | Conductor Rail | Load range 1-300ton, can be customized per client demand | Running distance | Ordinary goods,such as steel plate, workpiece,equipment etc special goods,such as coil. column,ladle etc |
| Battery Powered Transfer cart | KPX | Battery | Using frequency | ||
| Motorized Transfer carriageriage | KPJ | Cable Drum | Running distance | ||
| Busbar Powered Handling carriageriage | KPC | Busbar | Working shop | ||
| Towed Rail cart | KP | Tractor | 1-100t | Working shop | |
| Steerable Towed cart | BWT | Tractor | Load range 1-50t, less than 20t, cement floor is ok. More than 20t,steel floor is demanded. | Working environment | |
| Trackless Handling Machine | BWP | Battery | Working path |
1.Q: Whether you product can be customized?
A: Sure. All our products are customized as per customers’ requirement, because different products are with different requirements of specification. The proper solution will be provided according to your true demand.
2.Q: How can I operate the battery transfer cart ?
A: Please don’t worry, dear. The English user manual, parts manual will be delivered with your items together.
3.Q: How to ensure your product quality?
A: The product will be tested before delivery, and the quality certification will be sent you to check. And if any doubt, you can come to our factory and test it by yourself, or you can let some third-parties to do the inspection for you.
4.Q: How about the delivery time?
A: Generally speaking, the delivery time is 45 days. But it depends on the quantity and products requirement, we will try our best to deliver it as soon as possible.
5.Q: How about the payment term?
A: Generally speaking, we accept 50%T/T deposit in advance,the balance 50% is paid by T/T before dispatch. however, 30% T/T deposit in advance,the balance 70% is paid by T/T before dispatch also can be accepted to meet your demand in order to further cooperation. Of course, The L/C also is OK.
6.Q: If meeting urgent demand, what should I do?
A: Please do not hesitate to let us know before making order, we will try our best to shorten the period on the basis of guaranteeing the quality and prioritize your productions’ manufacture.
